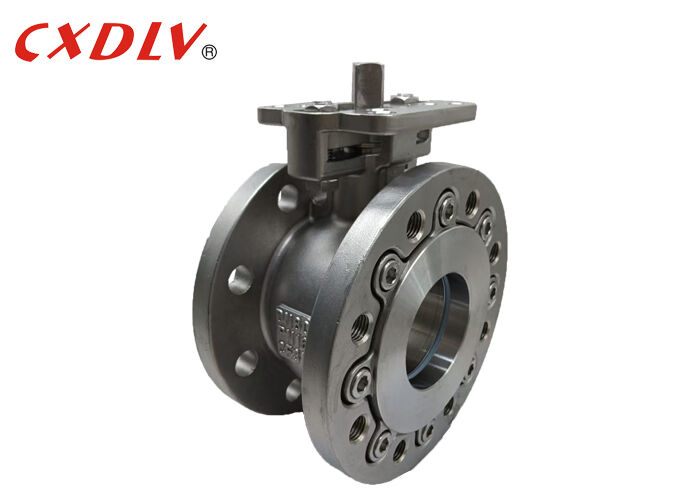

Italian thin-walled wafer ball valve with quick-change components - stainless steel ball valve
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | CXDLV |
| Certification: | CE&ISO |
| Numéro de modèle: | Q71F |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièce |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Cas de contreplaqué appropriés selon différentes structures de vannes |
| Délai de livraison: | 5 ~ 25 jours de travail |
| Conditions de paiement: | T / T, Paypal, Western Union, D / A, L / C, D / P, Moneygram |
| Capacité d'approvisionnement: | 500pcs / mon |
|
Détail Infomation |
|||
| Nom du produit: | 1pc de soupape à bille | Matériau de la vanne: | Matériau de la vanne |
|---|---|---|---|
| Pression: | PN16 | Opération: | Poignée |
| Connexion: | Tranche | Modèle: | Q71F |
| Mettre en évidence: | Italian thin-walled wafer ball valve,stainless steel ball valve with quick-change,flanged ball valve with thin-walled design |
||
Description de produit

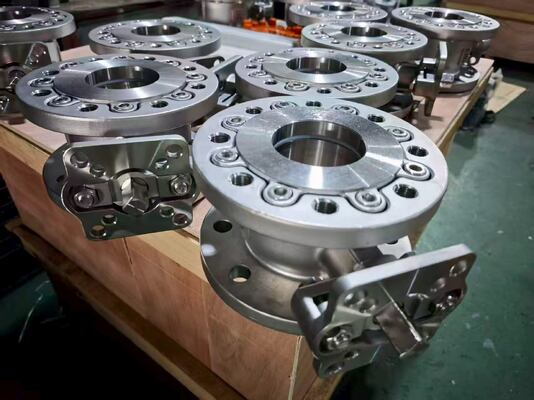

Italian thin-walled wafer ball valve with quick-change components - stainless steel ball valve
General Features
Italy Ball Valve
Applicable Standards:
- Design and Manufacturing : GB / T12237 / 1989
- Connection : JB / T79
- Fireproof Test: GB / T13927 - 1992
Size Range:
- DN15 ~ DN200
Nominal Pressure:
- Contruction 1.6 ~ 4.0 MPa
Temperature Limit:
- 20 °C ~ 350 °C
Wafer Type ball valves (or called “Italy Super Thin” Type ball valves) are used in the pipeline equipment in the condition of PN1.0~2.5MPa, working temperature of 29~180℃(sealing ring is RPTFE) or 29~180℃(sealing ring is PPL Polyphenylene), to achieve to cut off or connect the medium in the pipeline. The applicable medium, such as water, steamer, oil, Nitric Acid, Acetic Acid, Carbamide, or medium of oxidizability can be applied subject to difference valve material adopted.
| Unit:mm | |||||
| Pressure | Size | L | D | D1 | D2 |
| PN16 | 15 | 35 | 95 | 65 | 45 |
| 20 | 38 | 105 | 75 | 55 | |
| 25 | 42 | 115 | 85 | 65 | |
| 32 | 50 | 135 | 100 | 78 | |
| 40 | 62 | 145 | 110 | 85 | |
| 50 | 72 | 160 | 125 | 100 | |
| 65 | 95 | 180 | 140 | 120 | |
| 80 | 118 | 195 | 160 | 135 | |
| 100 | 140 | 215 | 180 | 155 | |
| 125 | 195 | 245 | 210 | 185 | |
| 150 | 225 | 280 | 240 | 210 | |
| 200 | 275 | 335 | 295 | 265 | |
Application
Wafer Ball Valve can be widely used in petroleum, chemical, metallurgy, power station, light industry and other fields to automatically adjust or cut off oil, water, gas and pulp or fibrous fluid.
Strength
1. Blow out proof stem design
2. Full port design
3. ISO5211 direct mounting pad
4. Flange Standard:GB
5. Various sealing materials and carbon steel options
6. Wafer ball valve structure simple, small size, light weight.
Model Selection
Wafer ball valve
| Model No | Working Pressure /Mpa |
Applicable Temperature /℃ |
Applicable Medium |
| Q71F-16P | 1.6 | PTFE≤150 PPL≤250 |
Nitrose |
| Q71F-25P | 2.5 | Nitrose | |
| Q71F-16Ti | 1.6 | Oxidizing Corrosive Medium | |
| Q71F-25Ti | 2.5 | Oxidizing Corrosive Medium |
