Industrial Grade Stainless Steel 3 Way Ball Valve with Full Port Opening and T-Port Design for Various Applications
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | CXDLV |
| Certification: | CE,ISO,TS |
| Numéro de modèle: | Q45F |
Conditions de paiement et expédition:
| Quantité de commande min: | 1pc |
|---|---|
| Détails d'emballage: | Cas de contreplaqué appropriés selon la structure de différentes vannes |
| Délai de livraison: | 5 ~ 25 jours de travail |
| Conditions de paiement: | T / T, L / C ,, D / A, D / P, Western Union, Moneygram |
| Capacité d'approvisionnement: | 5000pcs par mois |
|
Détail Infomation |
|||
| Corps: | Les émissions de dioxyde de carbone et de dioxyde de carbone sont définies dans la présente annexe. | Siège: | PTFE, RTFE, POB |
|---|---|---|---|
| Structure: | réduisez ennuyé | Taille du port: | 15A à 200A |
| Connexion: | RF | Pression: | 150LB à 300LB |
| Opération: | Engrenage à vis sans fin | Standard: | ANSI, ASME, API, DIN, JIS, BS, GB |
| Application: | Eau, pétrole, gaz ... | ||
Description de produit

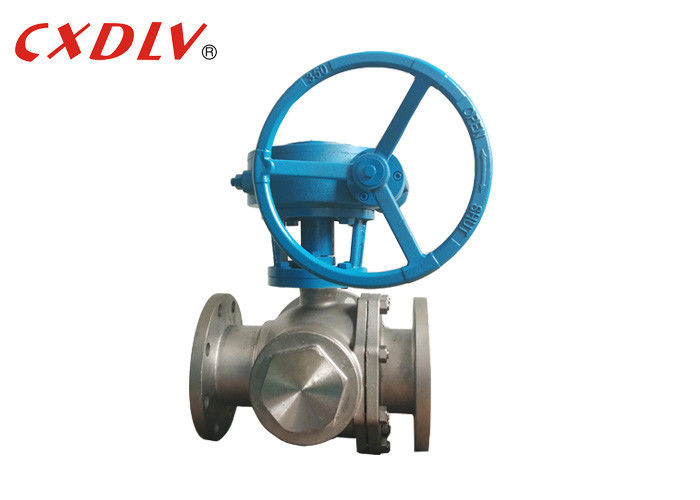

Stainless Steel 3 way Ball Valve T-port with Gear Operation
Ball Valve Features
Full Port 3 Way Ball Valve
Applicable Standards:
- Design and Manufacturing:GB12237-89
- Connection:JB/T79
- Fireproof Test: API607 4th 1993
- Test and Inspection:GB/T13927-1992
Size Range:
- DN15 ~ DN200
Pressure Rating:
- PN16 PN25 PN40
Temperature Range:
- -20°C~185°C
Three-way ball valve is available in T and L versions. The T-type enables three orthogonal pipes to communicate with each other and cut off the third channel to function as a split and merge. The L three-way ball valve type can only connect two pipes that are orthogonal to each other, and can not keep the third pipe connected to each other at the same time, only to distribute.
| Pressure | Size | L | L1 | D | D1 | D2 | Z-φd | ISO5211 φD |
4-φW |
| PN16 | 15 | 130 | 65 | 95 | 65 | 45 | 4-14 | F5 | 4-φ6 |
| 20 | 160 | 80 | 105 | 75 | 55 | 4-14 | F5-F7 | 4-φ8 | |
| 25 | 180 | 90 | 115 | 85 | 68 | 4-14 | F5-F7 | 4-φ8 | |
| 32 | 200 | 100 | 135 | 100 | 78 | 4-18 | F5-F7 | 4-φ8 | |
| 40 | 220 | 110 | 145 | 110 | 88 | 4-18 | F7-F10 | 4-φ10 | |
| 50 | 240 | 120 | 160 | 125 | 102 | 4-18 | F7-F10 | 4-φ10 | |
| 65 | 260 | 130 | 180 | 145 | 122 | 4-18 | F7-F10 | 4-φ10 | |
| 80 | 280 | 140 | 195 | 160 | 138 | 8-18 | F10-F12 | 4-φ12 | |
| 100 | 320 | 160 | 215 | 180 | 158 | 8-18 | F10-F12 | 4-φ12 | |
| 125 | 280 | 190 | 245 | 210 | 188 | 8-18 | F12-F14 | 4-φ16 | |
| 150 | 440 | 220 | 280 | 240 | 212 | 8-23 | F14-F16 | 4-φ16 | |
| 200 | 550 | 275 | 335 | 295 | 268 | 12-23 | F14-F16 | 4-φ16 |
Advantages of Ball Valve
- With lowest flow resistance
- It can realize quick opening and closing, and the opening and closing time of some structures is only 0.05~0.1s, so that it can be used in the automation system of the test stand. Quick open and close the valve when operating without impact.
- In full open and full closed, the ball and seat of the sealing surface and media isolation,so high-speed through the valve medium will not cause the erosion of the sealing surface.
- Compact structure,light weight,it can be considered for low-temperature medium system for the most reasonable valve structure.
- Manufactured in different sizes providing flexibility in selection
- Provide safe service under high pressure and high temperature conditions
- Compared with other valves,they are controlled with less force.
Ball Valve Applications
Ball Valves are used for flow and pressure control and shut off for corrosive fluids,slurries,normal liquid and gases.
They are used in the oil and natural gas industrial,but also find a place in many manufacturing sectors and chemical storage.
